The T-Lab Eco is easy to use, giving you easy access to cycle data and status.

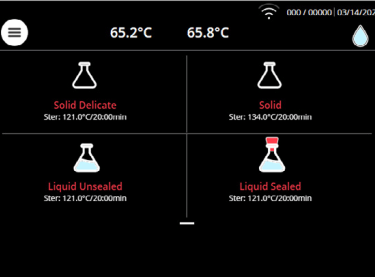

✦ User-friendly touch screen control panel. Quickly see programs, cycles times, water levels and more.

✦ Easily transfer cycle data to a PC using USB memory device.

✦ Advanced documentation and traceability options.

✦ Built-in memory for 1000 cycles.

✦ Multilevel password protection.

✦ Connect to nework and use R.PC.R software to generate reports with graphs and tables.

T-Lab Eco was developed especially for educational institutions and research facilities. Designed with simplicity and economy in mind.

Featuring the only IoT software designed for the smart laboratory, connecting sterilization devices and communicating on-site or remotely. Cloud based and paperless.

This reliable workhorse is ideal for the general laboratory in need of easy operation,
safety and cycle features for day-to-day needs. Intuitive, user friendly technology, including colour touchscreen and multiple programmes for sterilization.

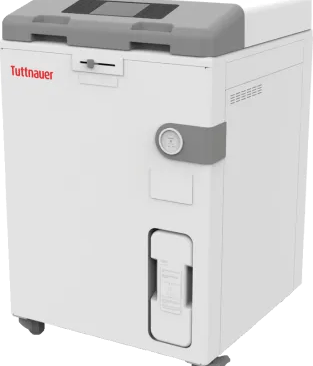

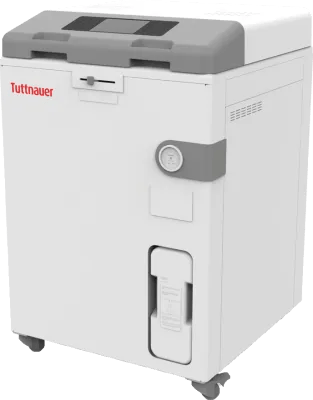

T-Lab Eco

Technical Features

Chamber Volume

V60: 60 Liters
V85: 85 Liters

Weight

V60: 111 kg
V85: 120 kg

Chamber Dimensions

V60: 390 Ø × 505 D (mm)
V85: 390 Ø × 700 D (mm)

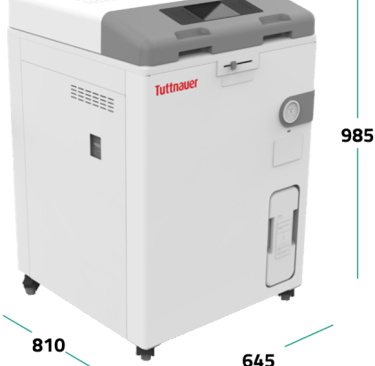

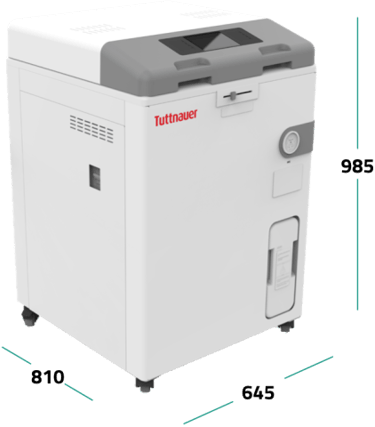

External Dimensions

V60: 645 W × 985 H × 810 D (mm)
V85: 645 W × 985 H × 810 D (mm)

Shipping Dimensions

V60: 820 W × 1250 H × 900 D (mm)
V85: 820 W × 1250 H × 900 D (mm)

Electrical Ratings

Voltage: 220-240 VAC (both models)
Single Phase (both models)
Power: V60: 3000W - V85: 5400W
Amperage: V60: 13.1A - V85: 22.3A

Wastewater tank volume

3 Litres (both models)

Cooling water tank volume

6 Litres (both models)

Maximum Allowable Working Pressure

2.8 bar (both models)
